DSP开发之PCI驱动
发布时间：2021-05-02 18:46:11.425 文章来源：AiSoftCloud 浏览次数：2792 下载次数：1

初步了解Windows驱动

微软技术文档：https://docs.microsoft.com/zh-cn/windows-hardware/drivers/

示例KMDF驱动程序：https://docs.microsoft.com/zh-cn/windows-hardware/drivers/wdf/sample-kmdf-drivers

示例UMDF驱动程序：https://docs.microsoft.com/zh-cn/windows-hardware/drivers/wdf/sample-umdf-drivers

编译示例程序

此处以微软提供的最简单的KMDF驱动程序（ECHO，该驱动程序演示了如何使用框架的队列并请求对象和自动同步）为例：

从github上下载微软驱动程序示例：

  1. git clone https://github.com/microsoft/Windows-driver-samples.git

(1) 用Visual Studio 2019打开工程目录Windows-driver-samples\general\echo\kmdf\kmdfecho.sln（安装了Windows SDK及WDK驱动开发工具：

如何安装参考：https://docs.microsoft.com/zh-cn/windows-hardware/drivers/download-the-wdk

在Windows 10下这个仓库生成的驱动安装有问题，未找到原因，可以使用Windows-driver-samples\general\echo\umdf2\umdf2echo.sln，这个工程测试可用。

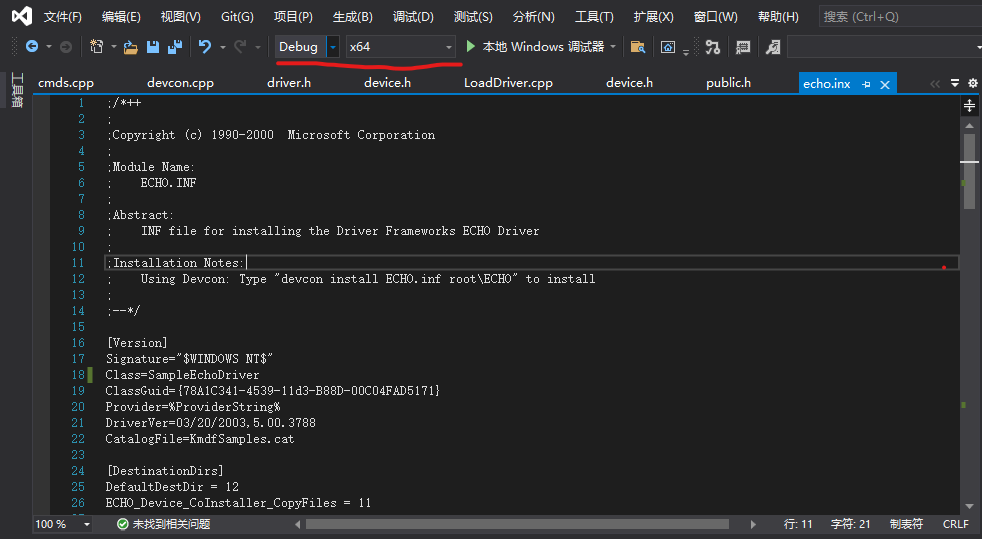

(2) 64位系统下需要设置编译平台为x64，仓库默认x86，安装会出现失败：
编译平台设置

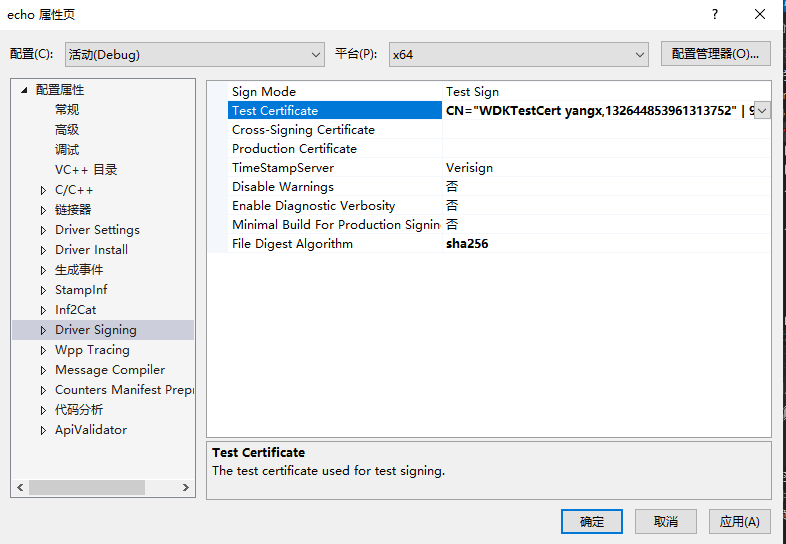

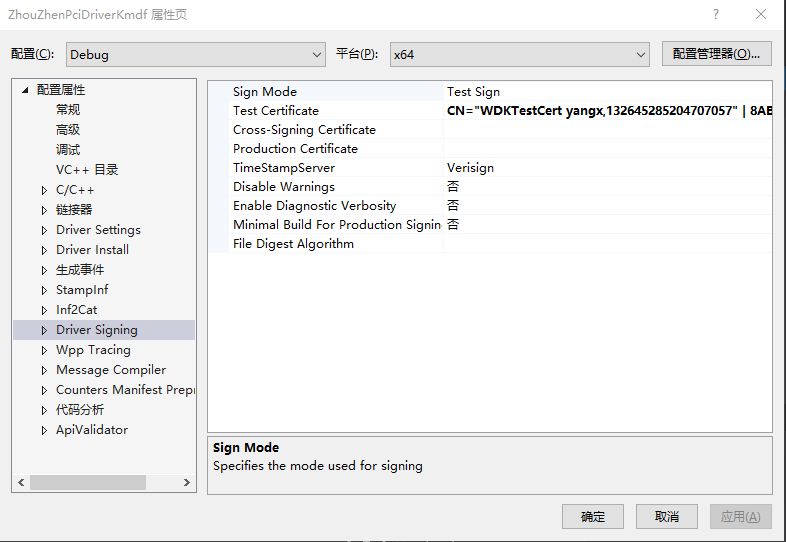

(3) 64位系统下需要对驱动进行签名，不然会无法安装，设置测试签名：
签名设置

(4) 用Visual Studio 2019打开工程目录Windows-driver-samples\setup\devcon\devcon.sln，编译生成devcon可执行程序。

(5) 管理员权限打开命令行，输入以下命令，即可安装驱动：

  1. devcon.exe install echo.inf root\ECHO

(6) 打开设备管理器，可以看到安装的驱动了：

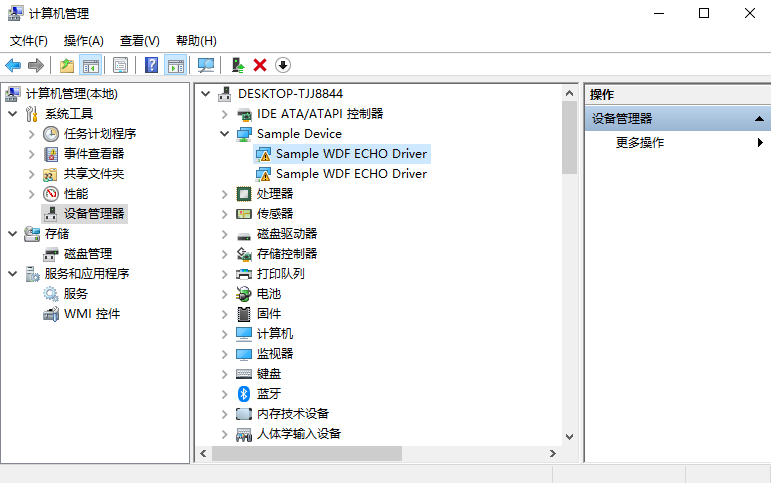

下图为内核态驱动：
设备管理器

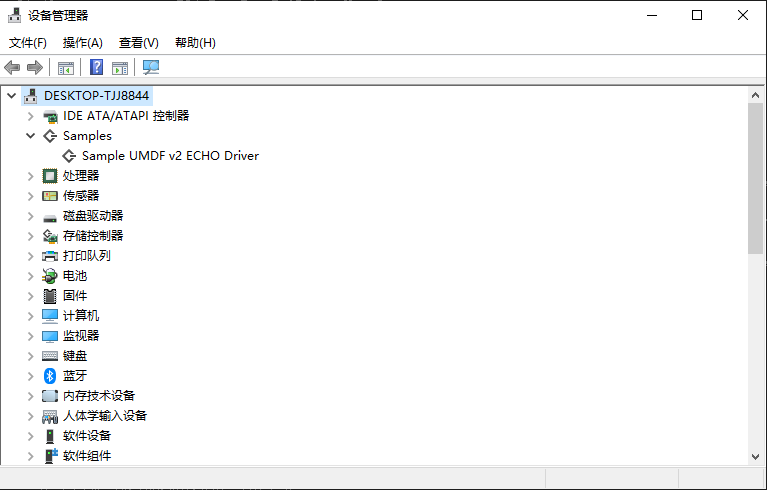

下图为用户态驱动：
用户态

KMDF驱动框架

一个即插即用的驱动程序主要包含：

1、一个DriverEntry例程

2、一个EvtDriverDeviceAdd例程

3、一个或多个I/O队列

4、一个或多个I/O事件回调例程

5、支持即插即用及电源管理的例程

6、支持的WMI回调例程，用于管理计算机系统

7、其他回调例程，如对象的清除、终端处理、DMA等例程

DriverEntry例程

DriverEntry例程负责驱动程序的初始化，是驱动程序的入口，就像可执行程序的main函数一样。所有的驱动程序都包含DriverEntry例程。

DriverEntry例程主要用来创建驱动对象及设置EvtDriverDeviceAdd例程地址：

  1. NTSTATUS
  2. DriverEntry(
  3.     _In_ PDRIVER_OBJECT  DriverObject,
  4.     _In_ PUNICODE_STRING RegistryPath
  5.     )
  6. {
  7.     WDF_DRIVER_CONFIG config;
  8.     NTSTATUS status;
  9.     WDF_OBJECT_ATTRIBUTES attributes;
  11.     WDFDRIVER driver;
  12.     PDRIVER_CONTEXT driverContext;
  14.     WPP_INIT_TRACING(DriverObject, RegistryPath);
  16.     TraceEvents(TRACE_LEVEL_INFORMATION, TRACE_DRIVER, "%!FUNC! Entry");
  18.     WDF_OBJECT_ATTRIBUTES_INIT(&attributes);
  19.     attributes.EvtCleanupCallback = ZhouZhenPciDriverKmdfEvtDriverContextCleanup;
  21.     WDF_DRIVER_CONFIG_INIT(&config,
  22.                            ZhouZhenPciDriverKmdfEvtDeviceAdd
  23.                            );
  25.     status = WdfDriverCreate(DriverObject,
  26.                              RegistryPath,
  27.                              &attributes,
  28.                              &config,
  29.                              WDF_NO_HANDLE
  30.                              );
  32.     if (!NT_SUCCESS(status)) {
  33.         TraceEvents(TRACE_LEVEL_ERROR, TRACE_DRIVER, "WdfDriverCreate failed %!STATUS!", status);
  34.         WPP_CLEANUP(DriverObject);
  35.         return status;
  36.     }
  38.     TraceEvents(TRACE_LEVEL_INFORMATION, TRACE_DRIVER, "%!FUNC! Exit");
  40.     return status;
  41. }

EvtDriverDeviceAdd 例程

驱动程序初始化后，PnP管理器调用驱动程序的 DeviceAdd 例程来初始化由该驱动程序所控制的设备。在 EvtDriverDeviceAdd 例程中，驱动程序创建一个设备对象作为目标I/O设备，并将设备对象附着在设备堆栈中。

在设备被首次枚举时，DeviceAdd 例程在系统初始化时被调用。当系统运行时，任何时候新设备被枚举，系统都将调用 DeviceAdd 例程。

在KMDF中，DeviceAdd 例程的职责是：创建设备对象，一个或多个I/O队列和设备GUID接口，设置各种事件的回调例程，如即插即用、电源管理、I/O处理等例程。

  1. NTSTATUS
  2. KmdfEvtDeviceAdd(
  3.     _In_    WDFDRIVER       Driver,
  4.     _Inout_ PWDFDEVICE_INIT DeviceInit
  5.     )
  6. /*++
  7. Routine Description:
  9.     EvtDeviceAdd is called by the framework in response to AddDevice
  10.     call from the PnP manager. We create and initialize a device object to
  11.     represent a new instance of the device.
  13. Arguments:
  15.     Driver - Handle to a framework driver object created in DriverEntry
  17.     DeviceInit - Pointer to a framework-allocated WDFDEVICE_INIT structure.
  19. Return Value:
  21.     NTSTATUS
  23. --*/
  24. {
  25.     NTSTATUS status;
  26.     WDF_PNPPOWER_EVENT_CALLBACKS    pnpPowerCallbacks;
  27.     WDF_POWER_POLICY_EVENT_CALLBACKS powerPolicyCallbacks;
  28.     WDF_OBJECT_ATTRIBUTES           deviceAttributes;
  29.     WDFDEVICE                       device;
  30.     PFDO_DATA                       fdoData = NULL;
  32.     WDFQUEUE queue;
  33.     WDF_IO_QUEUE_CONFIG             queueConfig;
  34.     WDF_INTERRUPT_CONFIG            interruptConfig;
  36.     UNREFERENCED_PARAMETER(Driver);
  38.     PAGED_CODE();
  40.     TraceEvents(TRACE_LEVEL_INFORMATION, TRACE_DRIVER, "%!FUNC! Entry");
  42.     //
  43.     // I/O type is Buffered by default. If required to use something else,
  44.     // call WdfDeviceInitSetIoType with the appropriate type.
  45.     //
  46.     // 采用WdfDeviceIoDirect方式
  47.     WdfDeviceInitSetIoType(DeviceInit, WdfDeviceIoDirect);
  49.     //
  50.     // Zero out the PnpPowerCallbacks structure.
  51.     //
  52.     // 初始化即插即用和电源管理例程配置结构
  53.     WDF_PNPPOWER_EVENT_CALLBACKS_INIT(&pnpPowerCallbacks);
  55.     //
  56.     // Set Callbacks for any of the functions we are interested in.
  57.     // If no callback is set, Framework will take the default action
  58.     // by itself.  This sample provides many of the possible callbacks,
  59.     // mostly because it's a fairly complex sample that drives full-featured
  60.     // hardware.  Drivers derived from this sample will often be able to
  61.     // provide only some of these.
  62.     //
  64.     //
  65.     // These callback is invoked to tear down all the driver-managed state
  66.     // that is set up in this function.  Many times, this callback won't do
  67.     // much of anything, since many of the things that are set up here will
  68.     // have their lifetimes automatically managed by the Framework.
  69.     //
  72.     //
  73.     // These two callbacks set up and tear down hardware state,
  74.     // specifically that which only has to be done once.
  75.     //
  76.     // 设置即插即用基本例程
  77.     // EvtDevicePrepareHardware和EvtDeviceReleaseHardware两个例程
  78.     // 对硬件设备能否获得Windows操作系统分配的资源起着至关重要的作用。
  79.     // EvtDevicePrepareHardware的任务主要包括获得内存资源、内存物理地址与虚拟地址的映射、I/O端口映射和中断资源分配。
  80.     pnpPowerCallbacks.EvtDevicePrepareHardware = PciDrvEvtDevicePrepareHardware;
  81.     pnpPowerCallbacks.EvtDeviceReleaseHardware = PciDrvEvtDeviceReleaseHardware;
  83.     //
  84.     // These two callbacks set up and tear down hardware state that must be
  85.     // done every time the device moves in and out of the D0-working state.
  86.     //
  88.     pnpPowerCallbacks.EvtDeviceD0Entry = PciDrvEvtDeviceD0Entry;
  89.     pnpPowerCallbacks.EvtDeviceD0Exit = PciDrvEvtDeviceD0Exit;
  91.     //
  92.     // These next two callbacks are for doing work at PASSIVE_LEVEL (low IRQL)
  93.     // after all the interrupts are connected and before they are disconnected.
  94.     //
  95.     // Some drivers need to do device initialization and tear-down while the
  96.     // interrupt is connected.  (This is a problem for these devices, since
  97.     // it opens them up to taking interrupts before they are actually ready
  98.     // to handle them, or to taking them after they have torn down too much
  99.     // to be able to handle them.)  While this hardware design pattern is to
  100.     // be discouraged, it is possible to handle it by doing device init and
  101.     // tear down in these routines rather than in EvtDeviceD0Entry and
  102.     // EvtDeviceD0Exit.
  103.     //
  104.     // In this sample these callbacks don't do anything.
  105.     //
  107.     // pnpPowerCallbacks.EvtDeviceD0EntryPostInterruptsEnabled = NICEvtDeviceD0EntryPostInterruptsEnabled;
  108.     // pnpPowerCallbacks.EvtDeviceD0ExitPreInterruptsDisabled = NICEvtDeviceD0ExitPreInterruptsDisabled;
  110.     //
  111.     // This next group of five callbacks allow a driver to become involved in
  112.     // starting and stopping operations within a driver as the driver moves
  113.     // through various PnP/Power states.  These functions are not necessary
  114.     // if the Framework is managing all the device's queues and there is no
  115.     // activity going on that isn't queue-based.  This sample provides these
  116.     // callbacks because it uses watchdog timer to monitor whether the device
  117.     // is working or not and it needs to start and stop the timer when the device
  118.     // is started or removed. It cannot start and stop the timers in the D0Entry
  119.     // and D0Exit callbacks because if the device is surprise-removed, D0Exit
  120.     // will not be called.
  121.     //
  122.     pnpPowerCallbacks.EvtDeviceSelfManagedIoInit = PciDrvEvtDeviceSelfManagedIoInit;
  123.     pnpPowerCallbacks.EvtDeviceSelfManagedIoCleanup = PciDrvEvtDeviceSelfManagedIoCleanup;
  124.     pnpPowerCallbacks.EvtDeviceSelfManagedIoSuspend = PciDrvEvtDeviceSelfManagedIoSuspend;
  125.     pnpPowerCallbacks.EvtDeviceSelfManagedIoRestart = PciDrvEvtDeviceSelfManagedIoRestart;
  127.     //
  128.     // Register the PnP and power callbacks. Power policy related callbacks will be registered
  129.     // later.
  130.     //
  131.     // 注册即插即用和电源管理例程
  132.     WdfDeviceInitSetPnpPowerEventCallbacks(DeviceInit, &pnpPowerCallbacks);
  134.     //
  135.     // Init the power policy callbacks
  136.     //
  137.     WDF_POWER_POLICY_EVENT_CALLBACKS_INIT(&powerPolicyCallbacks);
  139.     //
  140.     // This group of three callbacks allows this sample driver to manage
  141.     // arming the device for wake from the S0 state.  Networking devices can
  142.     // optionally be put into a low-power state when there is no networking
  143.     // cable plugged into them.  This sample implements this feature.
  144.     //
  145.     powerPolicyCallbacks.EvtDeviceArmWakeFromS0 = PciDrvEvtDeviceWakeArmS0;
  146.     powerPolicyCallbacks.EvtDeviceDisarmWakeFromS0 = PciDrvEvtDeviceWakeDisarmS0;
  147.     powerPolicyCallbacks.EvtDeviceWakeFromS0Triggered = PciDrvEvtDeviceWakeTriggeredS0;
  149.     //
  150.     // This group of three callbacks allows the device to be armed for wake
  151.     // from Sx (S1, S2, S3 or S4.)  Networking devices can optionally be put
  152.     // into a state where a packet sent to them will cause the device's wake
  153.     // signal to be triggered, which causes the machine to wake, moving back
  154.     // into the S0 state.
  155.     //
  157.     powerPolicyCallbacks.EvtDeviceArmWakeFromSx = PciDrvEvtDeviceWakeArmSx;
  158.     powerPolicyCallbacks.EvtDeviceDisarmWakeFromSx = PciDrvEvtDeviceWakeDisarmSx;
  159.     powerPolicyCallbacks.EvtDeviceWakeFromSxTriggered = PciDrvEvtDeviceWakeTriggeredSx;
  161.     //
  162.     // Register the power policy callbacks.
  163.     //
  164.     WdfDeviceInitSetPowerPolicyEventCallbacks(DeviceInit, &powerPolicyCallbacks);
  166.     // Since we are the function driver, we are now the power policy owner
  167.     // for the device according to the default framework rule. We will register
  168.     // our power policy callbacks after finding the wakeup capability of the device.
  170.     //
  171.     // Specify the context type and size for the device we are about to create.
  172.     //
  173.     WDF_OBJECT_ATTRIBUTES_INIT_CONTEXT_TYPE(&deviceAttributes, FDO_DATA);
  175.     deviceAttributes.SynchronizationScope = WdfSynchronizationScopeDevice;
  177.     status = ZhouZhenPciDriverKmdfCreateDevice(DeviceInit);
  178.     if (!NT_SUCCESS(status)) {
  179.         TraceEvents(TRACE_LEVEL_ERROR, TRACE_DRIVER,
  180.             "WdfDeviceInitialize failed %!STATUS!\n", status);
  181.         return status;
  182.     }
  184.     //
  185.     // If our device supports wait-wake then we will set our power-policy and
  186.     // update S0-Idle policy.
  187.     //
  188.     /*
  189.     if (IsPoMgmtSupported(fdoData)) {
  190.         TraceEvents(TRACE_LEVEL_INFORMATION, TRACE_DRIVER,
  191.             "Device has wait-wake capability\n");
  192.         status = PciDrvSetPowerPolicy(fdoData);
  193.         if (!NT_SUCCESS(status)) {
  194.             TraceEvents(TRACE_LEVEL_ERROR, TRACE_DRIVER,
  195.                 "PciDrvSetPowerPolicy failed %!STATUS!\n", status);
  196.             return status;
  197.         }
  198.     }
  199.     */
  201.     TraceEvents(TRACE_LEVEL_INFORMATION, TRACE_DRIVER, "%!FUNC! Exit");
  203.     return status;
  204. }

I/O处理例程

I/O处理例程处理应用程序与驱动程序之间的通信，包括Create、Close、CleanUp、Read、Write、DeviceContrl等。

对于Read、Write、DeviceControl的I/O请求，是由队列来管理的，可以是默认队列，也可以是自己创建的队列，队列可以是一个，也可以是多个，可以串行处理，也可以并行处理。

  1. NTSTATUS
  2. ZhouZhenPciDriverKmdfQueueInitialize(
  3.     _In_ WDFDEVICE Device
  4.     )
  5. /*++
  7. Routine Description:
  9.      The I/O dispatch callbacks for the frameworks device object
  10.      are configured in this function.
  12.      A single default I/O Queue is configured for parallel request
  13.      processing, and a driver context memory allocation is created
  14.      to hold our structure QUEUE_CONTEXT.
  16. Arguments:
  18.     Device - Handle to a framework device object.
  20. Return Value:
  22.     VOID
  24. --*/
  25. {
  26.     WDFQUEUE queue;
  27.     NTSTATUS status;
  28.     WDF_IO_QUEUE_CONFIG queueConfig;
  30.     PAGED_CODE();
  32.     //
  33.     // Configure a default queue so that requests that are not
  34.     // configure-fowarded using WdfDeviceConfigureRequestDispatching to goto
  35.     // other queues get dispatched here.
  36.     //
  37.     WDF_IO_QUEUE_CONFIG_INIT_DEFAULT_QUEUE(
  38.          &queueConfig,
  39.         WdfIoQueueDispatchParallel
  40.         );
  42.     queueConfig.EvtIoDeviceControl = ZhouZhenPciDriverKmdfEvtIoDeviceControl;
  43.     queueConfig.EvtIoStop = ZhouZhenPciDriverKmdfEvtIoStop;
  44.     queueConfig.EvtIoRead = ZhouZhenPciDriverKmdfEvtIoRead;
  45.     queueConfig.EvtIoWrite = ZhouZhenPciDriverKmdfEvtIoWrite;
  47.     status = WdfIoQueueCreate(
  48.                  Device,
  49.                  &queueConfig,
  50.                  WDF_NO_OBJECT_ATTRIBUTES,
  51.                  &queue
  52.                  );
  54.     if(!NT_SUCCESS(status)) {
  55.         TraceEvents(TRACE_LEVEL_ERROR, TRACE_QUEUE, "WdfIoQueueCreate failed %!STATUS!", status);
  56.         return status;
  57.     }
  59.     return status;
  60. }

驱动程序调试

微软提供了可以调试驱动程序的工具 TraceView，该工具安装在WDK的安装路径下（默认路径：C:\Program Files (x86)\Windows Kits\10\Tools\x64），具体调试步骤如下：

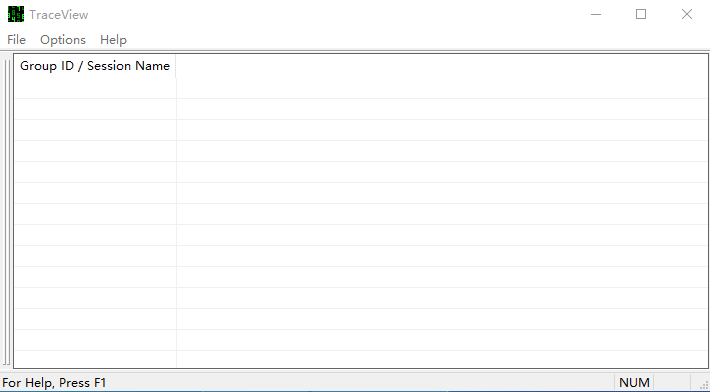

1、以管理员权限打开 TraceView：界面如下：
TraceView

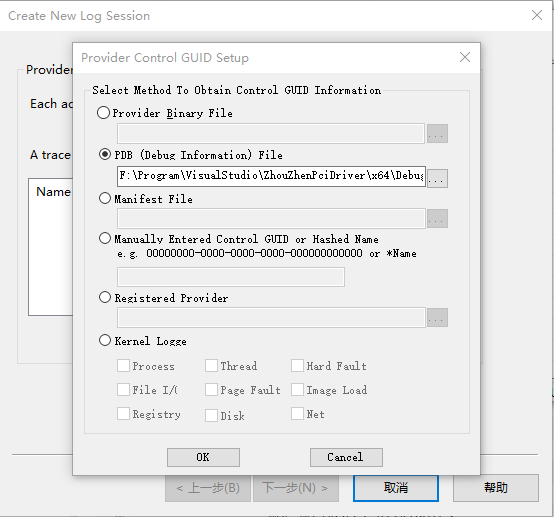

2、点击“File/Create new log session”，选择“PDB（Debug Infomation）File”，选择驱动程序的符号文件（.pdb后缀的文件）：
TraceView

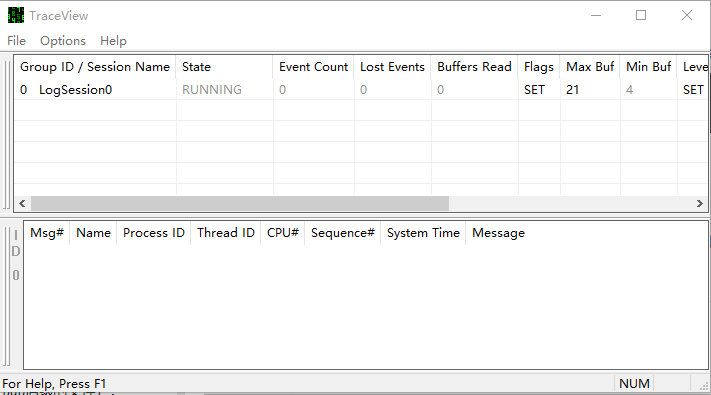

3、然后点击“OK”、“下一步”，创建一个调试session，如下：
Session

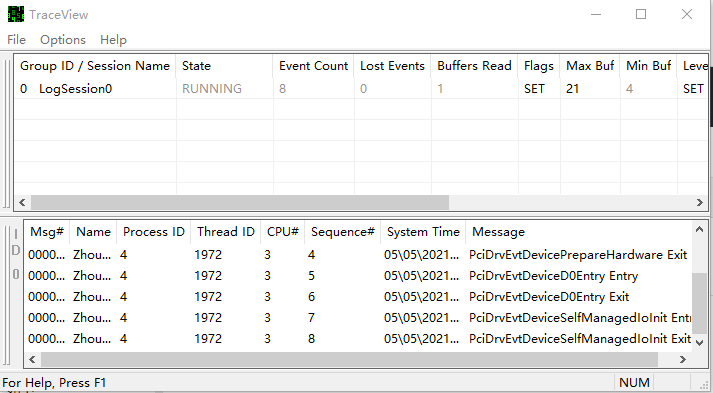

4、这时候就可以调试了，如执行安装驱动命令“devcon install echo.inf root\ECHO”，可以看到调试日志：
调试日志

生成测试证书

1、打开系统的testsigning模式，使得非权威CA发放的签名可以使用

2、做一个签名证书出来

3、把证书加进本机信任根CA中去

4、给驱动签名。

  1. bcdedit /set testsigning on
  2. MakeCert –r –pe –ss PrivateCertStore –n CN=www.aisoftcloud.cn(test) test.cer
  3. CertMgr -add test.cer -s -r localMachine root
  4. Signtool sign /v /s PrivateCertStore /n www.aisoftcloud.cn(test) /t http://timestamp.verisign.com/scripts/timestamp.dll echo.sys

Visual Studio 2019开发环境可通过设置下面参数进行签名，编译后使用“devcon install”命令重新安装驱动即可：
签名

参考文章

Windows-driver-samples/general/pcidrv/

编写简单的 WDF 驱动程序

64位Windows操作系统为驱动程序添加测试数字签名

PnPUtil (PnPUtil.exe) 是一个命令行工具，使管理员可以执行以下操作驱动程序包

编译64位驱动，设置驱动测试签名

使用 DevCon 工具安装驱动程序包

WDF 驱动程序echo安装

基于WDF的PCI/PCIe接口卡Windows驱动程序（4）- 驱动程序代码（源文件）

基于WDF的PCI—E驱动设计和实现

KMDF驱动程序框架【很详细】

更多文章可关注公众号
aisoftcloud
